Fishbone-Moncrief torus equilibrium

Overview

The Fishbone-Moncrief (FM) torus is an analytic equilibrium solution for a rotating fluid torus around a Kerr black hole, with constant specific angular momentum and a polytropic equation of state. The code is initialized with this solution and evolved with no magnetic field and no perturbation (u_jitter=0); since the torus is in exact equilibrium, any deviation at the final dump is purely numerical. We run this test in Funky Modified Kerr-Schild (FMKS) coordinates around a rapidly rotating black hole (\(a=0.9375\)), which simultaneously validates the FMKS implementation, the FM solution implementation, and the full GR machinery, including metric connections and the coordinate transforms to Boyer-Lindquist form needed to evaluate the FM solution.

Setup

The domain spans \([R_{\rm hor}, R_{\rm out}]\) radially and \([0,\pi]\) in polar angle, using FMKS coordinates (METRIC MKS, DEREFINE_POLES 1). The torus is bounded between the inner edge \(r_{\rm in}\) and an outer surface defined by the enthalpy contour. The specific angular momentum is constant throughout the torus and fixed to its Keplerian value at the pressure maximum \(r_{\rm max}\) (Fishbone & Moncrief 1976, eq. 3.8). The enthalpy at each point is obtained from the Bernoulli equation (eq. 3.6), and the density and internal energy follow from the polytropic relation,

\[ \rho = \left[\frac{(h-1)(\Gamma-1)}{\kappa\,\Gamma}\right]^{1/(\Gamma-1)},\qquad u = \frac{\kappa\,\rho^\Gamma}{\Gamma-1}, \]

with \(\kappa = 10^{-3}\) and \(\Gamma = 4/3\). The fluid has only azimuthal motion (\(u^r = u^\theta = 0\)); \(u^\phi\) is computed from the FM angular momentum equation (eq. 3.3). Zones outside the torus are set to floor values. Densities are normalized so that \(\max(\rho) = 1\) at initialization.

Parameters

Problem-specific runtime parameters are:

Parameter Meaning
rin Inner edge of the torus
rmax Radius of pressure maximum
u_jitter Amplitude of random internal energy perturbation; set to 0 for equilibrium test

Relevant compile-time and runtime parameters are:

Parameter Default Notes
N1TOT, N2TOT 128 Grid resolution; change for convergence study
METRIC MKS
DEREFINE_POLES 1 Enables FMKS (pole-derefined) coordinates
RECONSTRUCTION WENO
a 0.9375 Black hole spin (runtime parameter)
X1L/R_BOUND OUTFLOW
X2L/R_BOUND POLAR

Convergence

Because the torus is initialized in exact equilibrium, the L1 error is computed by comparing the final dump to the initial dump for \(\rho\), \(u\), and \(\tilde{u}^3\) (azimuthal velocity). Only zones with \(\rho > 0.02\) (i.e. inside the torus body, away from the floor-dominated atmosphere) are included,

\[ L_1(q) = \frac{1}{N_{\rm torus}}\sum_{\rho_{ij}(0) > 0.02}\left|q_{ij}(t_f) - q_{ij}(0)\right|. \]

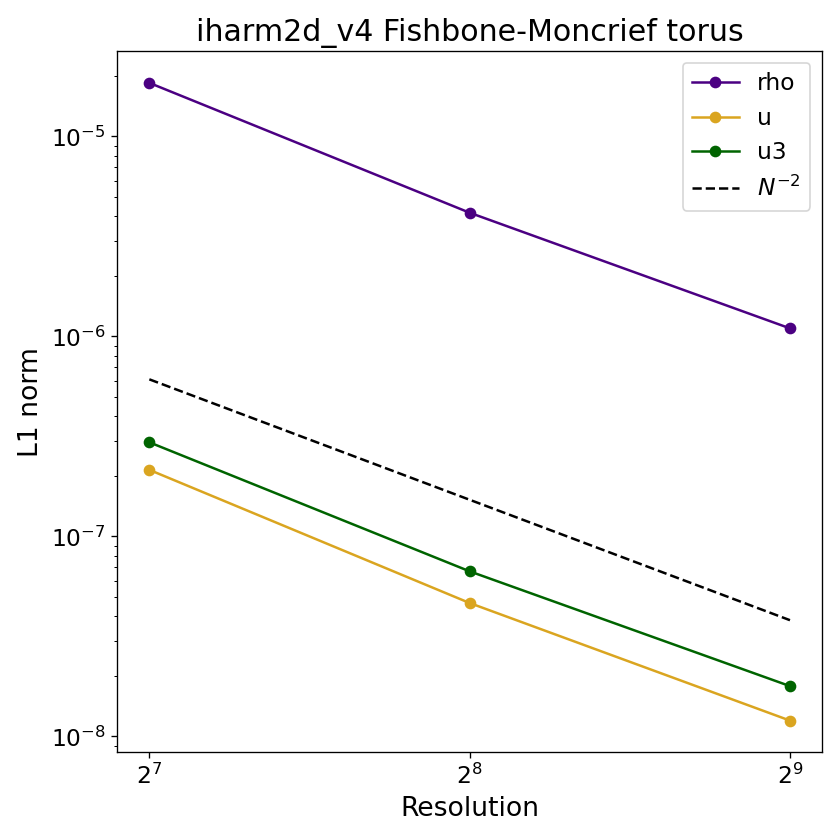

The errors in \(\rho\), \(u\), and \(\tilde{u}^3\) exhibit the expected second-order convergence, \(L_1 \propto N^{-2}\).

Convergence
