Linear MHD modes (1D)

Overview

Four linear MHD eigenmodes — entropy, slow, Alfvén, and fast — are initialized as small-amplitude sinusoidal perturbations propagating along one coordinate axis through a magnetized background. Selecting nmode chooses which eigenmode is excited; selecting idim sets the propagation direction. Because the wave propagates strictly along a coordinate axis aligned with the background magnetic field, this is a 1D problem: the grid collapses to a single strip of cells (not counting ghost zones; \(N_2 = 1\) for idim=1, \(N_1 = 1\) for idim=2). All eight primitives are tracked, and the analytic solution is known at all times, making this a precise test of the MHD wave speeds and the accuracy with which the code propagates each mode individually.

Setup

The domain is the unit square \([0,1]\times[0,1]\) in Minkowski coordinates with periodic boundaries. The background state is

\[ \rho_0 = 1,\quad u_0 = 1,\quad \mathbf{B}_0 = 1\hat{e}_{\rm idim},\quad \tilde{u}^i_0 = 0, \]

where \(\hat{e}_{\rm idim}\) is the unit vector along the propagation axis (idim=1 \(\Rightarrow\) \(\hat{x}\), idim=2 \(\Rightarrow\) \(\hat{y}\)), i.e. the field is aligned with the propagation direction. The initial state is

\[ q(x,t=0) = q_0 + A\,\delta q\,\cos(k\,x_{\rm idim}), \]

with amplitude \(A = 10^{-4}\) and \(k = 2\pi\) (one wavelength in the box). The perturbation eigenvector \(\delta q\) for each mode is:

nmode Mode Perturbed variables \(\lvert\omega\rvert\)
0 Entropy \(\delta\rho\) only \(t_f\)
1 Slow \(\delta\rho,\,\delta u,\,\delta\tilde{u}_{\parallel}\) \(2.742\)
2 Alfvén \(\delta\tilde{u}_{\perp}^{(1)},\,\delta B_{\perp}^{(1)}\) \(3.441\)
3 Fast \(\delta\tilde{u}_{\perp}^{(2)},\,\delta B_{\perp}^{(2)}\) \(3.441\)

where \(\parallel\) denotes the propagation direction and \(\perp^{(1,2)}\) denote the two transverse directions. The final time is set automatically to one full wave period \(t_f = 2\pi/|\omega|\). The frequencies are evaluated for the given background state above with \(k = 2\pi\sqrt{2}\) and adiabatic index \(\Gamma = 4/3\). Note that the Alfvén and fast modes are degenerate for propagation along \(\mathbf{B}\).

Parameters

Problem-specific runtime parameters are:

Parameter Meaning
nmode Eigenmode: 0=entropy, 1=slow, 2=Alfvén, 3=fast
idim Propagation direction: 1=x1, 2=x2

Relevant compile-time parameters are:

Parameter Default Notes
N1TOT 64 Set to \(N\), keep N2TOT=1 when idim=1; swap for idim=2
N2TOT 1 Set to \(N\), keep N1TOT=1 when idim=2; swap for idim=1
METRIC MINKOWSKI
RECONSTRUCTION LINEAR
X{1,2}{L,R}_BOUND PERIODIC

Convergence

Because tf is set to exactly one wave period, the analytic solution at \(t_f\) equals the initial eigenmode. The L1 error for each primitive \(q\) is

\[ L_1(q) = \frac{1}{N}\sum_{i}\left|q_i(t_f) - q_0 - A\,\delta q\,\cos(k\,x_i)\right|, \]

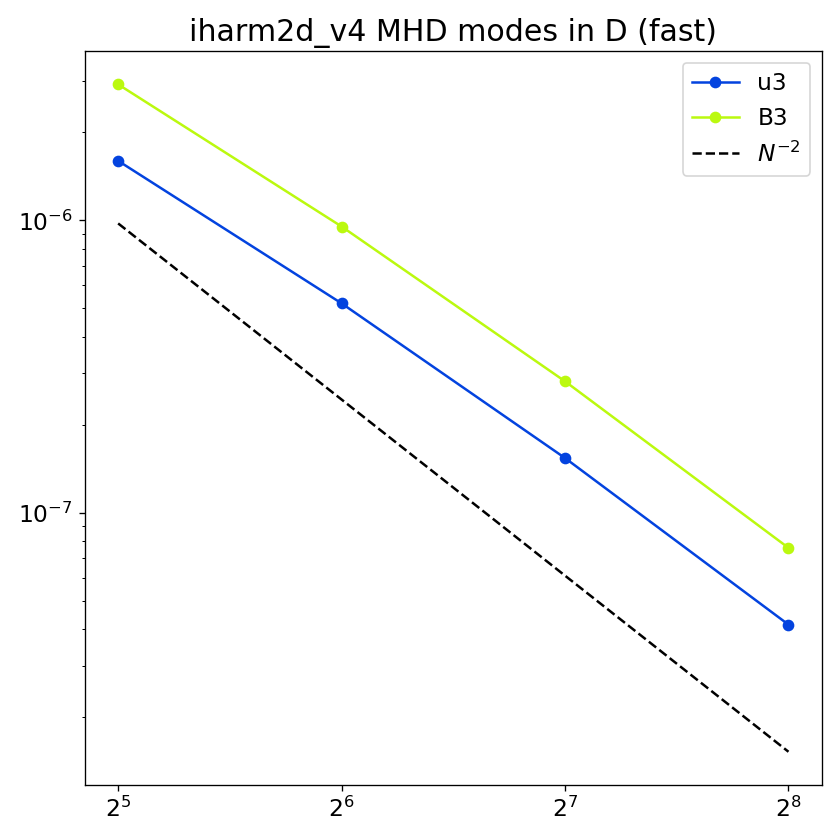

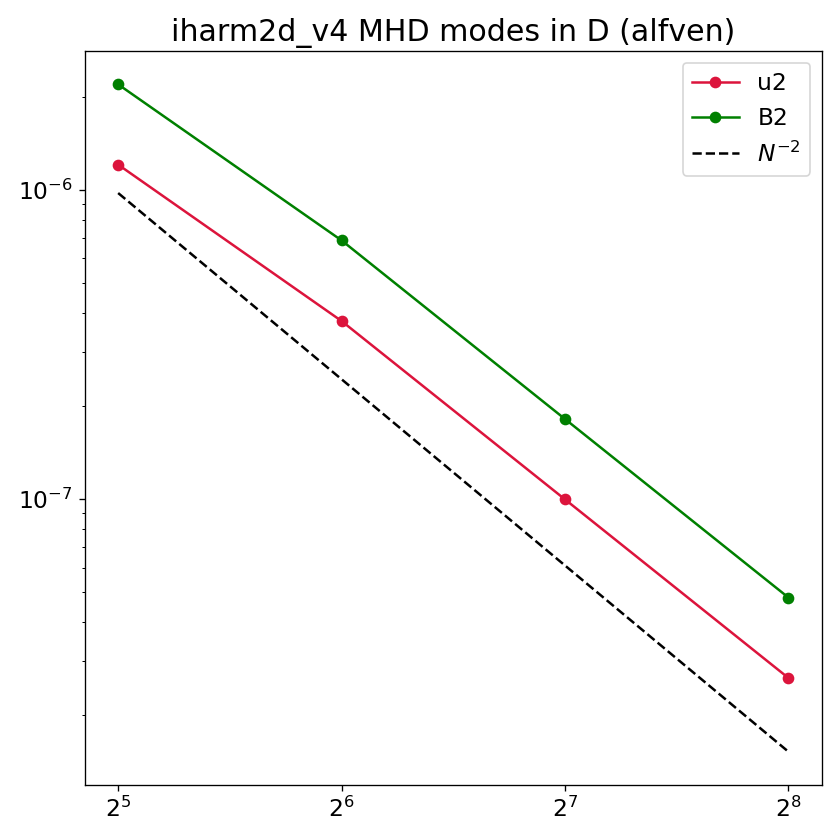

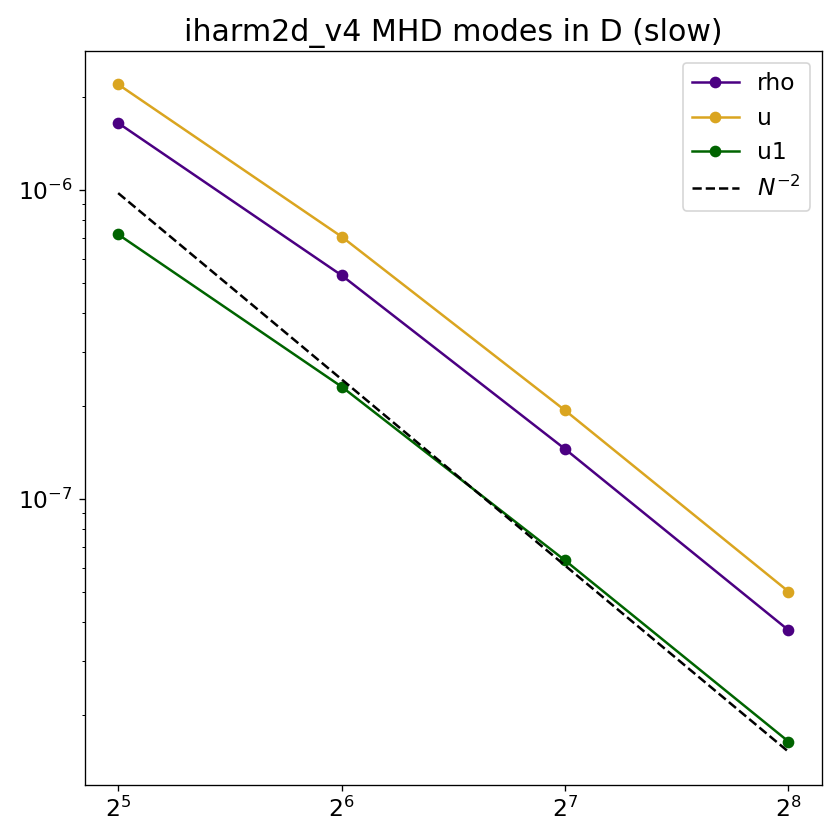

where \(q_0\) is the background value and only primitives with \(\delta q \neq 0\) for the selected mode are included. The expected slope is \(L_1 \propto N^{-2}\) as shown below,
